原版进口ASTM标准射线参考底片
原版进口ASTM标准射线参考底片
来源：
发布日期：2020-08-21 13:53
原版进口ASTM标准射线参考底片
以下为相关常用的，内容仅供参考，如有更多相关ASTM图谱咨询需要代购，可与我们联系。
ASTM E802 射线图谱
用于E802（灰铁铸件，4 1/2 in. （114mm）厚度，卷I，II，III）
ADJUNCTTO E802 REFERENCE RADIOGRAPHS FOR GRAY IRON CASTINGS UP TO 4 1/2 IN.（114 MM） IN THICKNESS （CONTAINS ASTM E 802 ADJUNCT V1， ASTM E 802ADJUNCT V2， AND ASTM E 802 ADJUNCT V3）
ASTM E802图谱 ADJUNCT V1
ADJUNCT TO E802 REFERENCE RADIOGRAPHS FOR GRAYIRON CASTINGS UP TO4 1/2 IN.（114 MM） IN THICKNESS - VOL I; MEDIMUM VOLTAGE SET OF 5SEVERITY LEVELS
ASTM E802图谱 ADJUNCT V2
ADJUNCT TO E802 REFERENCE RADIOGRAPHS FOR GRAYIRON CASTINGS UP TO4 1/2 IN.（114 MM） IN THICKNESS - VOL II; IRADIUM-192， SET OF 5SEVERITY LEVELS
ASTM E802图谱 ADJUNCT V3
ADJUNCT TO E802 REFERENCE RADIOGRAPHS FOR GRAYIRON CASTINGS UP TO4 1/2 IN.（114 MM）IN THICKNESS - VOL III; COBALT-60， SET OF 5SEVERITY LEVELS
ASTME155图谱
用于E155（铝、镁铸件，卷I，II）原版进口ASTM图谱

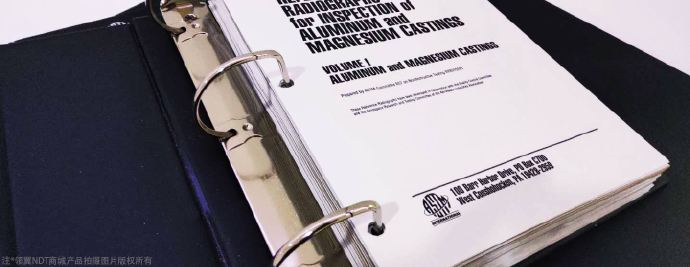

Adjunctto E155 Reference Radiographs for Inspection of Aluminum and Magnesium Castings
ASTM E155图谱 ADJUNCT V1
Adjunct to E155 Volume I - Reference Radiographs for Inspection of Aluminum and Magnesium Castings
ASTM E155图谱 ADJUNCT V2
Adjunct to E155 Volume II – Reference Radiographs for Inspection of Aluminum and Magnesium Castings
ASTME186射线图谱
用于E186（厚壁钢铸件，卷I，II，III） 原版进口ASTM图谱
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （2 TO 4-1/2 IN.） STEEL CASTINGS（VOLUMES 1，2，3）
ASTM E186图谱 ADJUNCT V1
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （2 TO 41/2IN） STEEL CASTINGS VOL 1: 1-MV X-RAY AND IRIDIUM-192
ASTM E186图谱 ADJUNCT V2
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （2 TO 41/2IN） STEEL CASTINGS VOL 2: 2-MV X-RAY AND COBALT-60
ASTM E186图谱 ADJUNCT V3
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （2 TO 41/2IN） STEEL CASTINGS VOL 3: 4-MV TO 30-MV X-RAY
ASTM E192图谱
用于E192（薄壁熔模钢铸件） 原版进口ASTM图谱
Adjunct to E192 Reference Radiographs for Investment Steel Castings of Aerospace Applications
ASTME242图谱
用于E242（改变某个变量的X光图像参照片） 原版进口ASTM图谱
ADJUNCTTO E242 REFERENCE RADIOGRAPHS FOR APPEARANCES OF RADIOGRAPHIC IMAGES AS CERTAIN PARAMETERS ARE CHANGED
ASTME272图谱
用于E272（高强度钴基和钴镍基合金钢铸件）原版进口ASTM图谱
REFERENCE RADIOGRAPHS FOR HIGH-STRENGTH COPPER-BASE AND NICKEL-COPPER ALLOYCASTINGS
ASTME280图谱
用于E280（厚壁钢铸件，4 1/2 x 12英寸，卷I，II）
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （4-1/2 TO 12 INCH） STEEL CASTINGS（VOLUMES 1 & 2）
ASTM E280 ADJUNCT V1
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （4 1/2 TO12IN） STEEL CASTINGS VOL 1: 2-MV X-RAY AND COBALT-60
ASTM E280 ADJUNCT V2
REFERENCE RADIOGRAPHS FOR HEAVY-WALLED （4 1/2 TO12IN） STEEL CASTINGS VOL 2: 4-MV TO 30-MV X-RAYS
ASTME310图谱
用于E310（锡青铜铸件的射线照片）
RADIOGRAPHS FOR TIN BRONZE CASTINGS
ASTME390图谱
用于E390（钢熔焊，卷I，II，III）
ADJUNCTTO E390 REFERENCE RADIOGRAPHS FOR STEEL FUSION WELDS – REFERENCE RADIOGRAPHS FOR STEEL FUSION WELDS （VOLS I， II，AND II） （ALSO SEEASTM E 390 ADJUNCT V1， ASTM E 390 ADJUNCT V2， AND ASTM E 390ADJUNCT V3） ASTM E 390 ADJUNCT V2 ON BACK-ORDER
ASTM E390 ADJUNCT V1
ADJUNCT TO E390 VOLUME I - REFERENCE RADIOGRAPHSFOR STEEL FUSION WELDS - TO 1/4 IN.
ASTM E390 ADJUNCT V2
ADJUNCT TO E390 VOLUME II – REFERENCE RADIOGRAPHS FOR STEEL FUSIONWELDS - OVER 1/4 - 3 IN.
ASTM E390 ADJUNCT V3
ADJUNCT TO E390 VOLUME III – REFERENCE RADIOGRAPHS FOR STEEL FUSION WELDS - OVER 3 - 8IN.
ASTME1648图谱
参考射线照片检查铝熔化焊接 原版进口ASTM图谱
STANDARD REFERENCE RADIOGRAPHS FOR EXAMINATION OF ALUMINUM FUSION WELDS +ACTIVE STANDARD
用于E446（2英寸钢铸件，卷I，II，III） 原版进口ASTM图谱
Adjunctto E446 Reference Radiographs for Steel Castings Up to 2 in. （51mm） in Thickness （Contains Volumes I， II， and III）
ASTM E446 ADJUNCT V1
Volume I - Reference Radiographs or Steel Castings Up to 2 in. （51 mm） in Thickness
ASTM E446 ADJUNCT V2
Volume II - Reference Radiographs for Steel Castings Up to 2 in. （51 mm） in Thickness
ASTM E446 ADJUNCT V3
VOLUME III - REFERENCE RADIOGRAPHS FOR STEEL CASTINGS UP TO 2 IN. （51 MM）IN THICKNESS - VOLUME III）: 2-MVTO 4-MV X RAYS AND COBALT-60 REFERENCE RADIOGRAPHS - SET OF 34 ILLUSTRATIONS （ 5 BY 7 IN.）IN A 15 BY 17-IN. RING BINDER
ASTME505图谱
用于E505（铝和镁压铸件）
REFERENCE RADIOGRAPHS FOR E505 INSPECTION OF ALUMINUM AND MAGNESIUM DIECASTINGS （INCLUDES A COPY OF STANDARD ASTM E505）
ASTME592图谱
用于E592指南获得ASTM等效透度计灵敏度
ADJUNCTTO E592 GUIDE TO OBTAINABLE ASTM EQUIVALENT PENETRAMETERSENSITIVITY FOR RADIOGRAPHY OF STEEL PLATES 1/4 TO 2 IN. （6 TO 51MM） THICK WITH X RAYS AND 1 TO 6 IN. （25 TO 152 MM） THICK WITHCOBALT-60
ASTME1320射线图
用于E1320（钛合金铸件，卷I，II）
Adjunctto E1320 Reference Radiographs for Titanium Castings
ASTM E1320图谱 ADJUNCT I
REFERENCE RADIOGRAPHS FOR TITANIUMCASTINGS
ASTM E1320图谱 ADJUNCT II
REFERENCE RADIOGRAPHS FOR TITANIUMCASTINGS
ASTME1648图谱
用于E1648（铝熔焊）
STANDARDREFERENCE RADIOGRAPHS FOR EXAMINATION OF ALUMINUM FUSION WELDS +ACTIVE STANDARD
ASTME2422图谱
用于E2422（铝铸件检查用数字参考图集）
ReferenceRadiograph E2422 - Standard Digital Reference Images for Inspectionof Aluminum Castings
ASTME2660图谱
用于E2660 （航空设备用熔模钢铸件的数字参考图集）
STANDARDDIGITAL REFERENCE IMAGES FOR?E2660INVESTMENT STEEL CASTINGS FORAEROSPACE APPLICATIONS + ACTIVE STANDARD
ASTME2669图谱
用于E2669 （钛铸件的数字参考图集-组合产品） 原版进口ASTM图谱
ADJUNCTTO E2669 STANDARD DIGITAL REFERENCE IMAGES FOR TITANIUM CASTINGS +ACTIVE STANDARD （COMBO PRODUCT）
ASTM E2669 ADJUNCT V1
VOLUME I - STANDARD DIGITAL REFERENCE IMAGESFOR E2669 TITANIUM CASTINGS + ACTIVE STANDARD
ASTM E2669 ADJUNCT V2
VOLUME II - ADJUNCT TO E2669 STANDARD DIGITAL REFERENCE IMAGES FORTITANIUM CASTINGS + ACTIVE STANDARD
以上为相关常用图谱内容，如没有找到您需要的图谱，请联系我们，帮您解决。
我们提供相关ASTM图谱、AFS金相图、ASME锅炉及压力容器规范等等相关书籍规范。
